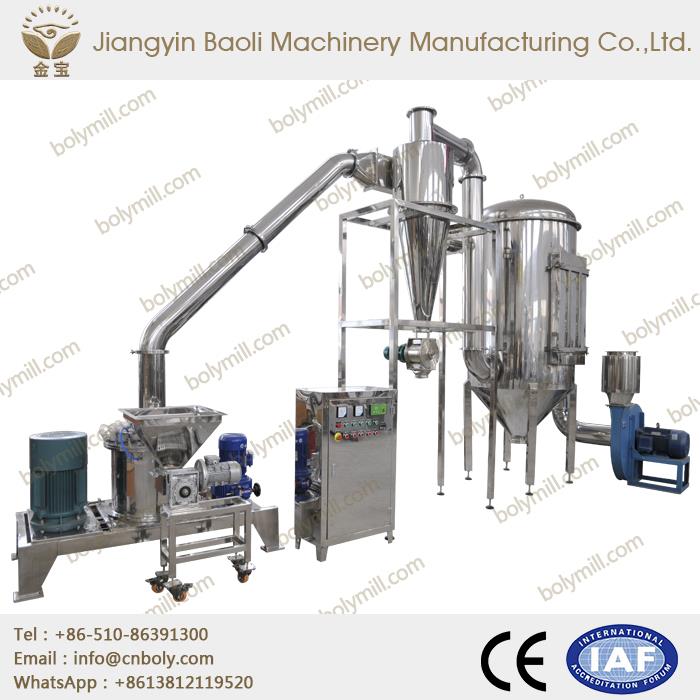

Wheat Flour Grinding Mill Machine Grinder

Flour Grinding Machine Introduction
This flour grinding machine consists of main motor, auxiliary motor and electrical control cabinet with the functions of winnowing , non-sieve or mesh, equality of granule size, and continuous processing etc. It is in accordance with international advanced level and is suitable for materials grinding in pharmaceutical, food and other industries.

Flour Grinding Machine Flour Mill Machine Wheat Flour Mill Machine







Wheat Flour Mill Machine Specialty
The raw material is sent to the abrasive chamber by the hopper through a spiral feeder, and it is cut by the high speed cutting tool. The material is moved to the cyclone separator and the suction method is used to carry out the bag filter. The pulverizered material meets the product requirements.

Original: Jiangsu, China
Certification: CE&ISO
Price: Negotiable
Material: SUS304/SUS316L
Voltage: the voltage can be as local demand
Payment term: TT, LC
Delivery date: Negotiable
Packing: export standard
Market: Middle East/ Africa/Asia/South America/Europe/North America
Warranty: 1 year
MOQ: 1 set



Grinding Mill Machine Detail
Cutter inside mill chamber

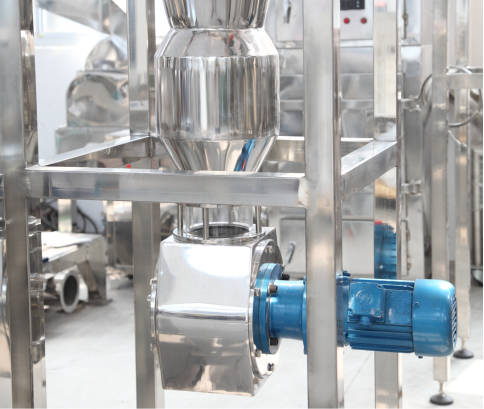

Cyclone part



Dust collecting set



Electric Control Box



Technical Data Of Flour Grinder

Model	Main structural dimensions(mm)	Capacity	Input particle size	Outpur particle size	Machine weight	Speed	Tatal power
	L1	L2	H1	H2	H3	H4	W1	Kg/h	mm	mesh	Kg	Rpm/min	KW
JB-15	3950	-	2640	850	650	350	1450	10-150	6	60-320	1100	6000	13.5
JB-20	4300	5900	2800	850	650	350	1450	15-200	10	60-320	1300	5400	21
JB-30	5250	7050	3200	950	650	350	1550	50-600	12	60-320	2000	3800	46
JB-60	6100	8100	3700	1050	650	400	2000	100-1000	15	60-320	3800	2900	84
JB-80	7200	9200	4250	1150	650	400	2300	120-1500	15	60-320	5100	2500	123
JB-100	7900	10100	4500	1250	650	400	2500	150-2000	20	60-320	7400	2000	183



Drawing Of Flour Mill Machine



Application
Grinding of chemical products, food .medicines, medicament, cosmetics, plastic, dyestuff, resin .grain, etc.

Experience and markets
Our company was established in 2004. Our products are sold all over the world and are well received by our customers.



Packaging Details
1. Outside package: Standard export wooden cases.
2. Inner package: Stretch film.
Delivery Details: about 25 workdays after payment.



FAQ
1.Q: Are you a manufacturer, trading company or a third party?
A:We are a manufacturer, and we have builded up our company since 2004.

2.Q: When is the delivery time of your machine?
A: Generally speaking, the delivery time of our machines is about 30 days. We will negotiate with our customers to customize the machines.

3.Q: Will you arrange the installation of the machine now after we have placing an order?
A: All machines are fully tested before delivery, so they can be used almost directly, and our machines are easy to install. If you need our help, we will be pleased to arrange the installation, but all the expenses will be paid by you.
