V Mixer & Blender for Pharmaceuticals, Chemicals & Food Use
JB series V mixer & blender is a high-efficiency mixing equipment specifically designed for dry powder and granular materials. It features high mixing uniformity, no dead zones in the mixing process, stable operation, and convenient operation. It is widely used in the pharmaceutical, chemical, and food industries, providing a stable and reliable material mixing solution for mass production.
Baoli Machinery is one of the best V-type mixer manufacturers & suppliers in China. If you are looking for V mixer machines, welcome to contact us!
-
![V Type Multi Cereals Bread Mix Powder Mixer]()
V Type Multi Cereals Bread Mix Powder Mixer
Add to Inquiry -
![Pigment Toner Powder Mixer]()
Add to Inquiry -
![Yeast Powder Mixer Machine]()
Add to Inquiry -
![V-Type Mixing Machine]()
Add to Inquiry -
![Stainless Steel Food Material V Type Mixer Machine]()
Stainless Steel Food Material V Type Mixer Machine
Add to Inquiry -
![Automatic Mixture Machine]()
Add to Inquiry -
![Spice Mixer Machine]()
Add to Inquiry -
![V Mixer Machine]()
Add to Inquiry -
![Best Automatic Batch Electric V Mixer Machine]()
Best Automatic Batch Electric V Mixer Machine
Add to Inquiry
Video of V Powder Mixer
Working Principle of JB Series V-Type Mixer
The core principle of the V-type mixer machine is to use the rotation of the container to generate complex movements of the material in the cylinder, such as separation and up and down, in order to achieve uniform mixing. Specifically, when the mixing drum rotates around the horizontal axis, due to the asymmetric design on both sides of the V-shaped container, the material will undergo the following motion states during the rotation process:
Circular Motion: The material moves upward with the cylinder wall under the action of centrifugal force and frictional force on the cylinder wall.
Separation and Scattering: When the material reaches a certain height, it will detach from the cylinder wall under the action of gravity and be scattered downwards.
Convergence and Impact: The materials on both sides of the cylinder intersect at the bottom of the V-shape, producing intense impact and diffusion.
These processes cycle back and forth with the rotation of the cylinder, allowing materials of different components to achieve sufficient shear and diffusion in a short period of time, achieving a uniform mixing effect. Some models are also equipped with forced mixing blades, which can break down clumped materials and further accelerate mixing speed, especially suitable for fine powder or slightly damp materials.

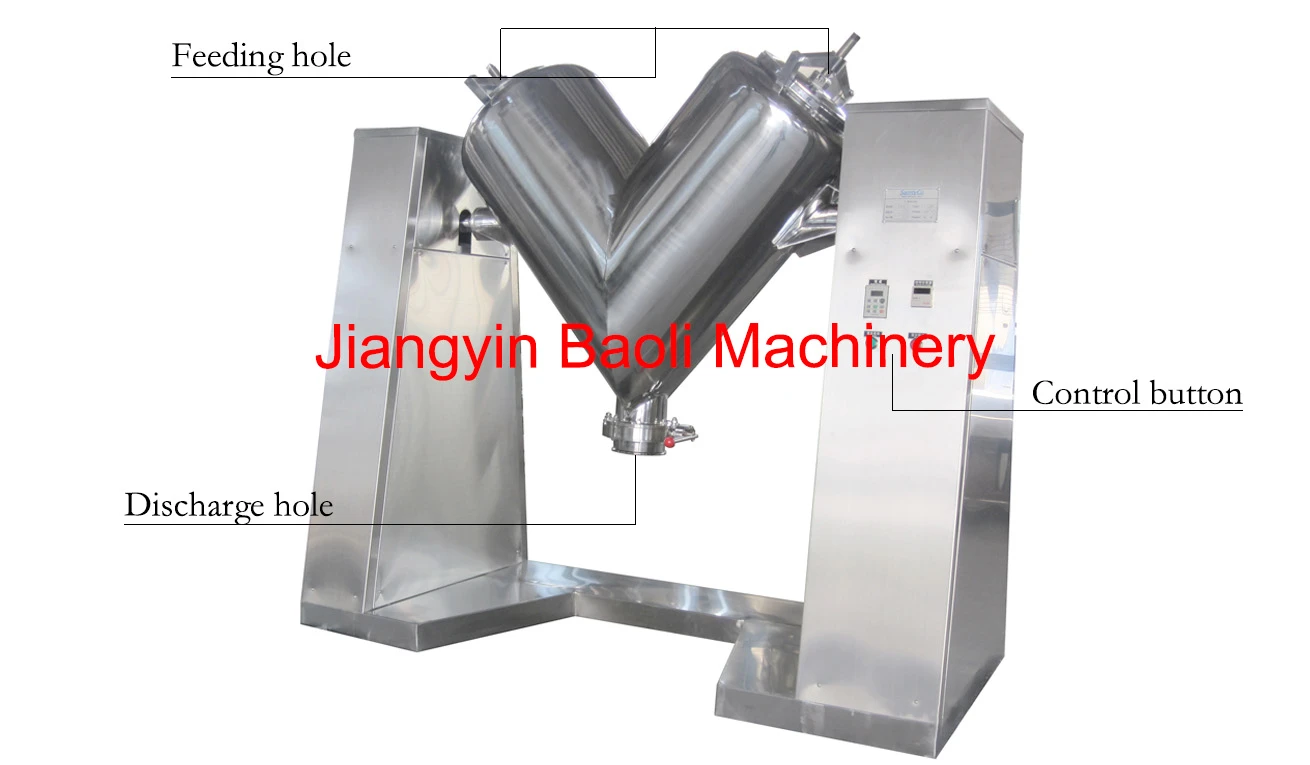

Equipment Structure of JB Series V Mixer
V-shaped mixing cylinder: The main container is usually made of stainless steel, with polished inner and outer walls that are smooth without dead corners and easy to clean.
Rack and bearings: support the entire mixing drum to ensure smooth rotation.
Transmission system: usually includes motors, reducers, etc., which drive the mixing drum to rotate. Many models use variable frequency speed regulation, which can continuously adjust the speed within a large range (such as 2-15 revolutions per minute).
Control system: Often equipped with time relays for setting and automatically stopping the mixing time.
(Optional) Forced mixer: mixing blades added for special materials.
Core Characteristics of V-type Mixing Machine
High mixing uniformity: The material moves fully inside the cylinder, and the mixing uniformity can usually reach over 98%.
Mild mixing without breakage: mainly relying on gravity diffusion, with minimal wear and breakage of material particles, it can effectively maintain the original physical state of the material.
Easy to clean without dead corners: The inner wall of the cylinder is smooth, with a smooth transition structure and no dead corners due to material accumulation, meeting strict hygiene standards in industries such as pharmaceuticals and food (such as GMP requirements).
Good sealing: It can achieve vacuum feeding and closed discharge, effectively preventing dust leakage, improving the working environment, and protecting the health of operators.
Easy to operate: compact structure, small footprint, high degree of automation, and usually set the time for automatic operation.
Applications of V Mixer
The V-type mixer is particularly suitable for mixing dry powder or granular materials with good fluidity, and is widely used in the following industries:
-
Pharmaceutical industry: mixing multiple drug raw materials or excipients.
-
Food industry: used for mixing milk powder, seasonings, food additives, etc.
-
Chemical industry: mixing of pigments, dyes, and plastic pellets.
-
Other fields: in industries such as ceramics, metallurgy, and feed.
Drawing & Technical Data
| Model | JB-180 | JB-300 | JB-500 | JB-1000 | JB-1500 | JB-2000 | JB-2500 | JB-3000 | JB-4000 |
| Capacity (L) | 180 | 300 | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 |
| Maximum Mixing Amount (KG) | 90 | 150 | 250 | 500 | 750 | 1000 | 1250 | 1500 | 2000 |
| Speed (Rpm/min) | 3-12 | 3-12 | 3-12 | 3-12 | 3-12 | 3-12 | 3-12 | 3-12 | 2-8 |
| Total Power (KW) | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 |
| Main Structural Dimensions (mm) |
L: 1780 W1: 800 W2: 1220 H1: 1700 H2: 650 H3: 1870 DN: 150 |
L: 1900 W1: 900 W2: 1450 H1: 1850 H2: 650 H3: 2100 DN: 150 |
L: 2500 W1: 1220 W2: 1600 H1: 2250 H2: 650 H3: 2250 DN: 200 |
L: 3050 W1: 1650 W2: 2190 H1: 2500 H2: 650 H3: 2840 DN: 200 |
L: 3350 W1: 1650 W2: 2350 H1: 2980 H2: 650 H3: 3000 DN: 200 |
L: 3800 W1: 1900 W2: 2600 H1: 3050 H2: 650 H3: 3250 DN: 200 |
L: 3990 W1: 1900 W2: 2850 H1: 3200 H2: 650 H3: 3500 DN: 250 |
L: 4650 W1: 2200 W2: 3050 H1: 3400 H2: 650 H3: 3700 DN: 250 |
L: 4950 W1: 2200 W2: 3250 H1: 3600 H2: 650 H3: 3900 DN: 250 |
| Machine Weight (KG) | 300 | 500 | 800 | 1200 | 1500 | 1900 | 2400 | 3100 | 4200 |
More photos
FAQ
Q1: Are you a factory or a trading company?
Q2: Can the V-type mixer mix both granules and powder at the same time?
A: As long as the density difference is not too significant, it can be mixed simultaneously.
Q3: What are the application fields of your V-type mixers?
A: Used in food additives, baking ingredients, pharmaceutical intermediates, health food, chemical raw materials, and other industries.
Q4: What information do I need to get a quote for a powder mixing machine?
A: ① What is the material of the machine?
② What capacity do you expect from a mixer machine? (kg/h)
③ What is the density of your raw material?
④ Do you need to add liquid?
Usually, we use stainless steel 304; if you want stainless steel 316, it's OK, and please tell us.
Q5: Can the machine be customized?
A: Yes, we provide flexible and customized solutions to precisely meet the special scenarios and high-performance requirements of your business.
