Ultrafine Salt Powder Hammer Mill Pulverizer Grinder Machine

Powder Grinder Machine Introduction

Applied as supporting equipment before fine crushing process in such trades as pharmaceutical, chemical and foodstuff etc. This powder grinder machine is a new generation coarse crushing equipment combining crushing and dust collection as a whole.



Working Method

This machine is of vertical crushing structure, and the material is fed into the crushing chamber through a hopper, crushed by simultaneous cutting of both fixed and movable knives and rotating impact of rotating knife, and enters into the catcher automatically under the effect of rotating centrifugal force, and the dust is filtered and recovered by dust collector through a bag. Designed according to GMP standard and wholly made of stainless steel, this machine has no flying dust during production, and can improve the utilization rate of material and reduce the cost of enterprise, thus reachine the intemational advanced level.

Original: Jiangsu, China

Certification: ISO9001,CE, ISO14001, OHSAS18001 etc.

Price: Negotiable

Material: SUS304

Voltage: 380V 50Hz, the voltage can be as local demand

Payment term: TT, LC

Delivery date: Negotiable

Packing: export standard

Market: Middle East/ Africa/Asia/South America/Europe/North America

Warranty: 1 year

MOQ: 1 set



Salt mill grinder / Salt crushing machine / Ultrafine mill

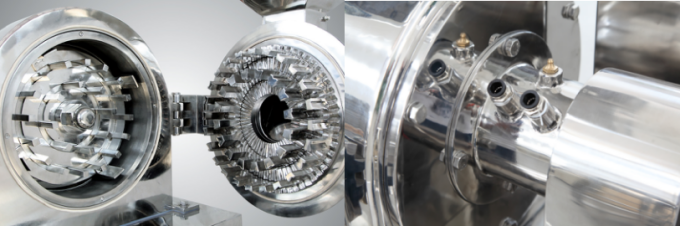

                               Hammer mill pulverizer                                              Water Cooling System



Drawing of powder grinder machine





Application

It is widely applied in the medical ,chemical,pesticide,food and provision industries.

Experience and markets

Our factory has more than 13years working experiences on researching and selling. Products are well sailed all over the world, got many compliments from customers.

If you need, we can help you do custom clearance.

Packaging Details: 1. Outside package: Standard export wooden cases.
                                 2. Inner package: Stretch film.
Delivery Details: about 25 workdays after payment.



Our Company

Our company locates at Wuxi city, very near Shanghai City and it only takes 30 minutes to get to our city by train from Shanghai.

1) We are golden supplier on alibaba with a history of more than 9 years.
    And our factory's history is more than 12 years.

2) We have CE certificate, ISO,BV...etc.

3) Each year, we takes part in a lot of Expos ,for example: FIC, CPHI, API...etc





Technical Data

Model	Main structural dimensions			Capacity	Input particle size	Outpur particle size	Machine weight	Speed	Tatal power
	L	W	H	Kg/H	mm	mesh	Kg	Rpm/min	KW
JB-20	650	820	1500	20-150	<6	12-120	230	4650	4
JB-30	700	900	1650	30-350	<10	12-120	330	3800	7.5
JB-40	750	1000	1750	50-450	<12	12-120	430	3400	11
JB-50	850	1150	1900	80-550	<15	12-120	700	2900	18.5
JB-60	950	1250	2150	100-800	<15	12-120	900	2300	22
JB-80	1100	1400	2250	120-1000	<20	12-120	1200	1800	30
JB-100	1300	1500	2400	150-1500	<20	12-120	1800	1400	45
