Dry Powder Blending Mixing Equipment

Powder Mixing Equipment Introduction

JB series dry powder blending mixing equipment is a pioneer product researched and a new high-efficiency mixer. It is widely used in the solid-solid (powder material) and solid-liquid (powder material fluidity material) mixing in the field of chemical industry, pharmacy, foodstuff industry, etc.



Specialty
JB series dry powder blending mixing equipment is mainly comprised of mixing barrel , spiral ribbon and driven parts. The spiral ribbon is made of two layers. That is, the inner ribbon makes the material move outwards, while the external ribbon makes the material move inwards which forms a good circulation of material. Ribbon moves so circumferentially that the mixer could achieve fine mixing efficiency in a very short time.

Price: Negotiable

Material: SUS304

Voltage: 380V 50Hz, the voltage can be as local demand

Payment term: TT, LC

Delivery date: Negotiable

Packing: export standard

Market: Middle East/ Africa/Asia/South America/Europe/North America

Warranty: 1 year

MOQ: 1 set

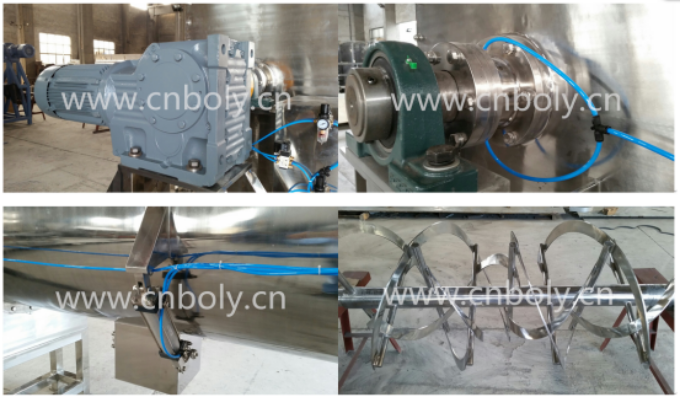

Details



Drawing of dry blenders for dry powders



Application

It is widely applied in the medical ,chemical,pesticide,food and provision industries.

Experience and markets

Our factory has more than 13years working experiences on researching and selling. Products are well sailed all over the world, got many compliments from customers.

BEST BEFORE & AFTER SERVICE TO YOU

1)ONE year guarantee. WHOLE life service. Within1 year, any problem part can send to us, we can give provide free new part(only damaged by machine itself).

2) Any problem before or after delivery, you could find and talk with us anytime. We will free supply technical support.

3) Video / CD of test running and installation, Maunal book, tool box sent with machine if client request.
About goods shipping of our Baoli machinery

We have long-term working shipping forwarder. We can do our best to send machine to your port safe and sound.



If you need, we can help you do custom clearance.

Packaging Details: 1. Outside package: Standard export wooden cases.

2. Inner package: Stretch film.

Delivery Details: about 25 workdays after payment.



If you want to send inquriy to me about powder mixing equipment dry powder blending equipment dry blenders for dry powders,plese tell me the following questions.

1) What material you want to mix?

2) What capacity you expect ? (kg/batch or litre/batch)

3) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...

(We only provide 3P, because our machines are all for industrial use,not for family.)

4) What material of the equipment you want? usually we adopt all stainless steel 304.

You can also choose

A all SS304

B all SS 316

C contact part SS 316, other parts SS 304



Please feel free to send us your detailed requirements, you would be satisfied with our service.





Technical Data

Model	Main Structural Dimensions(mm)						Volume	Max loading	Speed	Machine weight	Total power
	L1	L2	W1	W2	H1	H2	L	KG	Rpm/min	Kg	KW
JB-300	1915	1150	680	850	1000	50	300	180	65	600	4
JB-500	2510	1500	800	1000	1275	50	500	300	65	900	7.5
JB-1000	2980	1700	940	1120	1380	50	1000	600	48	1300	11
JB-1500	3160	1800	980	1420	1570	50	1500	900	48	1600	15
JB-2000	3360	2000	1040	1450	1625	50	2000	1200	35	2000	15
JB-3000	3640	2200	1250	1600	1850	50	3000	1800	35	2600	18.5
JB-4000	4100	2500	1440	1780	1960	50	4000	2400	33	3800	22
JB-5000	4320	2700	1540	1900	2070	50	5000	3000	27	4800	30
JB-6000	5000	3000	1650	2300	2350	50	6000	3600	27	5500	37
JB-8000	5000	3000	1750	2350	2400	50	8000	4800	22	6500	45
JB-10000	5600	3500	2140	2400	2750	50	10000	6000	22	8000	55
JB-15000	5800	4000	2250	2450	3075	50	15000	9000	14	9000	75
JB-20000	6170	4300	2450	2650	3500	50	20000	12000	14	11000	90
