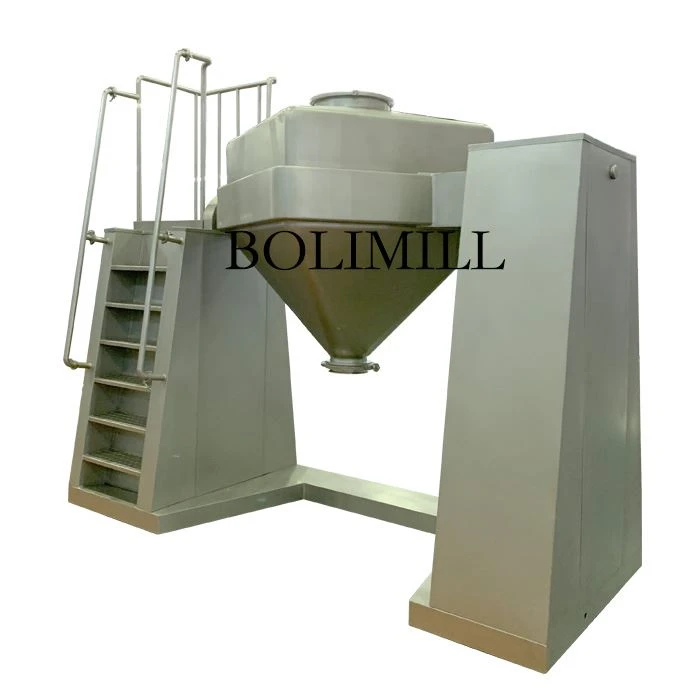

Medicine Mixer Machine

JB series square-cone medicine mixer machine is mainly used for mixing granules and powders, granules and granules together, and powders and powders together in the pharmaceutical industry. It features large batch capacity, high load capacity, and stable operation. It can also be widely used in the raw material pharmaceutical industry, chemical industry, food industry, and other fields.

- Volume range: 400L-4000L (customizable)
- Max loading: 200L-2000Kg (customizable)
- Material loading rate: 50%-80%
- Speed ​​range: 2-12 rpm (adjustable)
- Motor power: 3 kW-15 kW (depending on model)
- Design material: High-quality stainless steel (304/316L) or carbon steel with powder coating
- Control system: PLC touch screen intelligent control (optional)
- Product dimensions: Customized according to model

This medicine mixing machine uses a square-conical cylinder, combining rotational motion with three-dimensional tumbling, allowing pharmaceutical materials to move in multiple directions and in all directions within the cylinder. As the cylinder rotates, the materials are continuously thrown, tumbled, and folded, achieving rapid and uniform mixing. This process effectively avoids uneven mixing caused by gravitational stratification or adhesion, ensuring stable product quality.

The JB series square cone medicine powder mixing machine features a compact structure, stable performance, and convenient operation. Its surface is free of dead corners, uneven surfaces, and threads; all angles are rounded. Both inner and outer surfaces are polished, with an inner surface roughness Ra≤0.2μm and an outer surface roughness Ra≤0.4μm. The hopper cover uses a silicone sealant for excellent sealing and is equipped with a butterfly valve to prevent accidental operation. Cleaning is convenient. The feed coefficient is adjustable from 50% to 80%, and both mixing time and speed are adjustable, achieving a mixing efficiency of up to 99%. It meets GMP requirements.

* High Mixing Uniformity: The square cone design combined with rotary tumbling motion ensures rapid and uniform mixing of materials, with a mixing error of less than ±2%.

* Compact Structure and Easy Operation: The overall structure is rationally designed, occupying a small area and facilitating installation and maintenance.

* High Multifunctionality: Suitable for mixing various powders, granules, and lumps, offering wide adaptability.

* Energy Saving and Environmentally Friendly: Stable operation, low noise, and low energy consumption, meeting modern energy-saving standards.

* Safe and Reliable: Equipped with multiple safety protection devices to ensure safe operation.

* Superior Material and Corrosion Resistance: Made of food-grade stainless steel, suitable for the hygiene requirements of the pharmaceutical and food industries.

The square cone medicine mixer, with its excellent mixing effect and stable performance, is widely used in:
* Food Industry: Mixing powdered seasonings, grain powders, protein powders, etc.
* Pharmaceutical Industry: Uniformly mixing various pharmaceutical powders and additives to improve pharmaceutical quality.
* Chemical Industry: Mixing various chemical powders, such as pigments, additives, and catalysts.
* Building Materials Industry: Uniform mixing of powdered materials such as cement and gypsum.
* Other Fields: Mixing of various materials such as agricultural feed and plastic granules.
