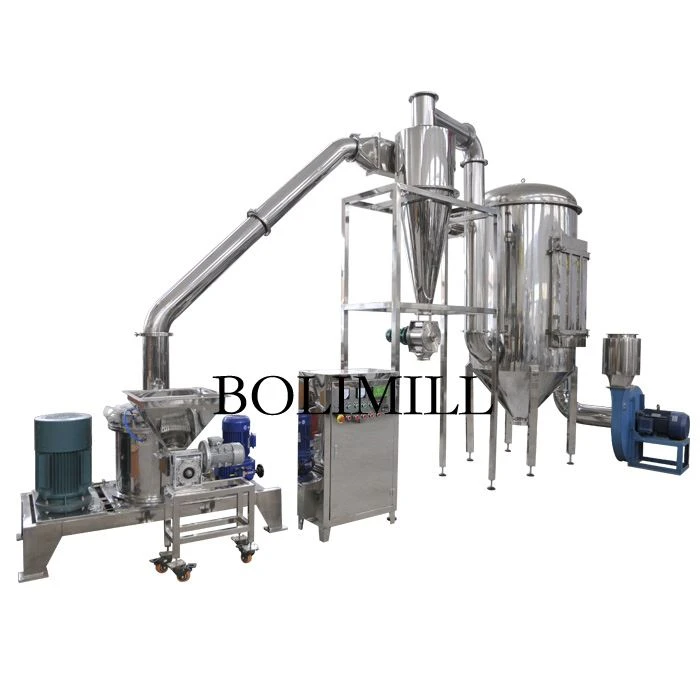

Impact Pulverizer Machine

JB series impact pulverizer machine is a high-performance grinding machine designed to pulverize materials into fine powders (60–320 mesh). It has the properties of wind selection, having no sieve or net, and an even granularity of the processed material. The production process going on continuously, the machine can undertake the grinding of chemical products .food .medicines, medicament, cosmetics, plastic, dyestuff, resin .grain, etc. It is constructed with stainless steel 304/316 for contact parts, ensuring durability, hygiene, and compliance with industry standards.







Model	Main Structural Dimensions (mm)							Capacity	Input Particle Size	Output Particle Size	Speed	Machine Weight	Total Power
	L1	L2	H1	H2	H3	H4	W1	Kg/H	mm	mesh	rpm	Kg	KW
JB-20	4260	5550	2900	1330	650	400	1440	15-200	10	60-320	5400	1400	21
JB-30	4915	6750	3450	1230	650	400	1765	50-600	12	60-320	3800	2300	46
JB-60	5490	7480	3740	1420	650	500	1945	100-1000	15	60-320	2900	3800	84
JB-80	6790	9325	4095	1500	800	500	2235	120-1500	15	60-320	2500	5100	123
JB-100	8300	10710	5085	1930	1000	550	2655	150-2000	20	60-320	2000	7400	183





* Capable of producing ultra-fine powders (60–320 mesh) for a wide range of materials.

* Delivers consistent, fine powders with capacities ranging from 15 to 2000 kg/hour, depending on the model and material.

* Built with durable materials (Stainless Steel 304/316) for long-term reliability.

* Premium materials ensure corrosion resistance and long service life, even in demanding conditions.

* Stainless Steel contact parts ensure compliance with food and pharmaceutical standards.

* Equipped with a cyclone and dust collector to maintain a clean working environment.

* Powered by motors (20–60 H.P.) designed for optimal performance with minimal power consumption.

* Available in five sizes-Jb-20, JB-30, JB-60, JB-80 and JB-100 to suit varying production needs.

* Suitable for a wide range of materials, from spices to minerals, making it a multi-purpose solution.

* Low maintenance and energy-efficient motors reduce operational costs.





Baoli Machinery offers tailored solutions to meet specific requirements:

* Material customization: Contact parts can be made of carbon steel, cast iron, or 304/316 stainless steel, depending on hygiene or durability requirements.

* Capacity adjustment: Grinding chamber size and motor power can be customized according to specific production requirements (10–2000 kg/hour).

* Feeding system: Optional manual or automatic rotary feeders to optimize material input.

* Classifier settings: Adjustable vortex classifiers allow for precise particle size control.

* Dust removal systems: Enhanced dust removal systems suitable for high-volume applications or applications with high material requirements.





Our company locates at Wuxi city, very near Shanghai City and it only takes 30 minutes to get to our city by train from Shanghai.
1) The engineers of our company have been engaged in the design and development of pharmaceutical machinery for a long time, and have a lot of experience.
2) Our company can provide 100% custom service, according to your actual production process, we can design and change the special machine for you to use.
3) You can send us some samples of your products and we will offer you the free testing of our machines.
