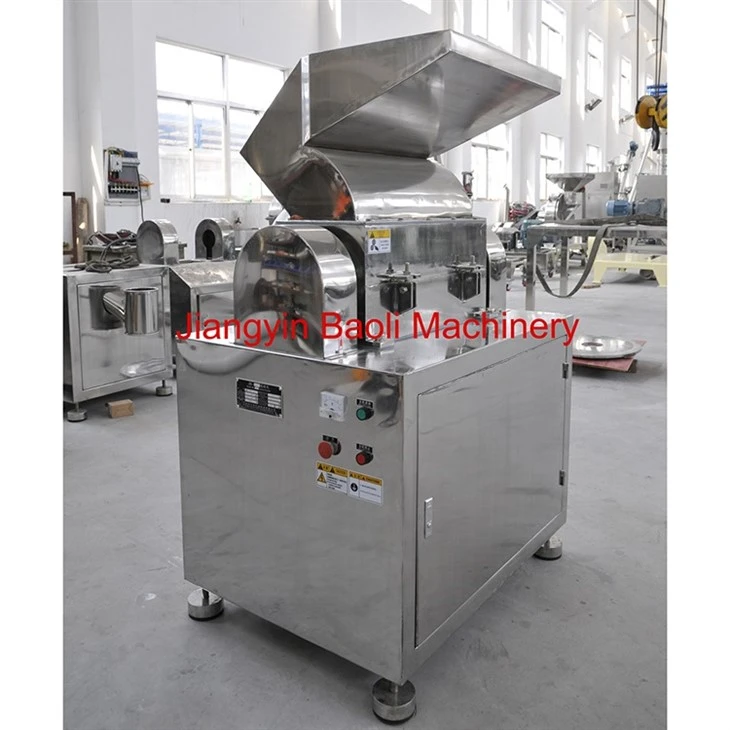

Crush Machine
The coarse crush machine is used in industries such as pharmaceutical, chemical, electronics, food, rubber, plastics, and others.It is about as professional equipment for crushing material in the process, and can crush difficult and hard materials such as plastic, rubber, etc. In particular, it is not limited to viscosity, hardness, softness, or the shape of the fiber material, and the crushing effect of all materials is good.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Industrial Coarse Crush Machine, High-Capacity Primary Crusher for Spices & Chemicals
The coarse crush machine is used in industries such as pharmaceutical, chemical, electronics, food, rubber, plastics, and others.
It is about as professional equipment for crushing material in the process, and can crush difficult and hard materials such as plastic, rubber, etc. In particular, it is not limited to viscosity, hardness, softness, or the shape of the fiber material, and the crushing effect of all materials is good.
It can also be used as supporting equipment for the fine grinding process.
Features & Benefits of Coarse Crusher Machine
Boost your production efficiency with Baoli Machinery's industrial coarse crush machine. Designed for high-throughput primary crushing of spices, chemicals, and minerals, delivering uniform particle size with low dust and high durability.
● All materials used in the crush machine are made of 304 stainless steel. If you require 316 stainless steel, we can customize it for you.
● Simply press a button; easy to clean; typically uses water cooling or an air compressor.
● Final granule size range: 0.5-20 mm.
● Simple structure, easy to install, and low noise.
● European standard and OEM services.
How Coarse Crusher Machine Works
Materials enter the crushing chamber through the hopper, are crushed by the simultaneous cutting of fixed and moving blades and the rotating impact of the rotating blades, and automatically flow out under the action of centrifugal force. This industrial coarse crush machine is designed according to GMP standards and is made entirely of stainless steel, ensuring that pharmaceuticals and food meet national health requirements.
Technical Data of JB Coarse Crusher
| Model |
Main Structural Dimensions L*W*H1*H2 |
Capacity |
Input Particle Size |
Output Particle Size |
Speed |
Machine Weight |
Total Power |
|||
|
(mm) |
Kg/H |
mm |
mm |
rpm |
Kg |
KW |
||||
|
JB-200 |
580*560(900)*1500*500(550) |
50-200 |
≤100 |
0.5-20 |
780 |
220 |
3 |
|||
|
JB-300 |
680*560(1100)*1500*500(550) |
80-300 |
≤100 |
0.5-20 |
780 |
300 |
4 |
|||
|
JB-400 |
780*560(1200)*1500*500(550) |
100-500 |
≤100 |
0.5-20 |
780 |
420 |
5.5 |
|||
|
JB-500 |
880*560(1200)*1500*500(550) |
120-700 |
≤100 |
0.5-20 |
780 |
580 |
7.5 |
|||
|
JB-600 |
980*560(1300)*1500*500(550) |
150-1000 |
≤100 |
0.5-20 |
780 |
750 |
11 |
|||
FAQ of Coarse Crush Machine
Q1: What types of materials are suitable for a coarse crush machine?
Q2: Can this machine produce fine powder directly?
A: No, this machine is specifically designed for coarse crushing (primary size reduction). Its purpose is to break large materials into smaller granules or flakes. For fine powder production, the output of this machine should be fed into a fine pulverizer or grinder.
Q3: How do I control the particle size of the crushed material?
A: The particle size is determined by the screen mesh installed at the bottom of the crushing chamber. You can easily swap out screens with different hole diameters to achieve the desired granule size (e.g., 3mm, 5mm, 8mm).
Q4: Is the crush machine suitable for food-grade applications?
A: Yes. For food and spice processing, we manufacture the machine using food-grade SUS304 stainless steel for all parts that come into contact with the material, ensuring hygiene and compliance with safety standards.
Contact Baoli Machinery for Your Crushing Needs
Optimize your production line with Baoli Machinery's reliable and efficient coarse crusher machine. Whether you need to process spices, chemicals, or recycling materials, we provide robust solutions tailored to your capacity and size requirements.
Contact Baoli Machinery today to discuss your material specifications and get a customized quote for your industrial crushing equipment.
