Ultra Fine Grinding Machine

A: Our ultra-fine grinding mill is designed for producing high-value-added powders, and its finished product fineness can be precisely adjusted within the range of 60 mesh to 320 mesh (approximately 250 microns to 45 microns). Production parameters can be flexibly adjusted according to the application requirements of the final product. Fineness adjustment is mainly achieved by adjusting the speed of the classifying wheel inside the main unit; operation is simple, and the response is rapid.

A: For common high-moisture materials and heat-sensitive spices (such as chili peppers and turmeric), our ultrafine grinder is equipped with multiple solutions:

High-efficiency grading system: The built-in precision grading wheel effectively prevents overly coarse or sticky materials from passing through, reducing the risk of screen clogging.

Equipped dust removal and cooling: The system's standard pulse dust collector and fan not only collect the finished product, but the powerful airflow also creates effective heat exchange within the grinding chamber, helping to remove heat and moisture generated during grinding. This prevents the material from melting or clumping due to temperature increases, thus ensuring the color, flavor, and flowability of the finished product.

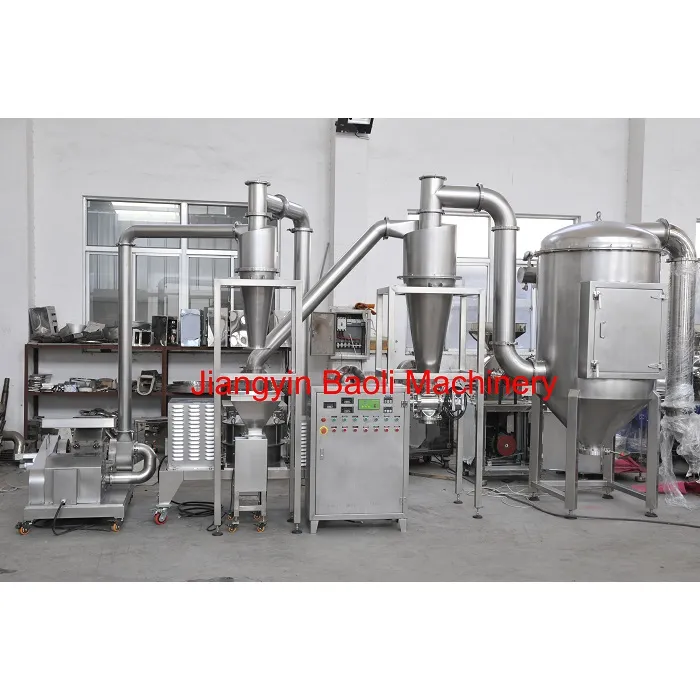

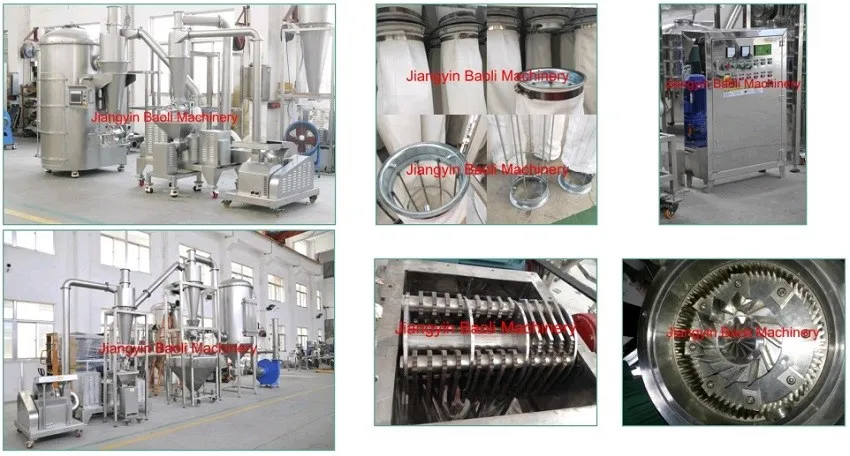

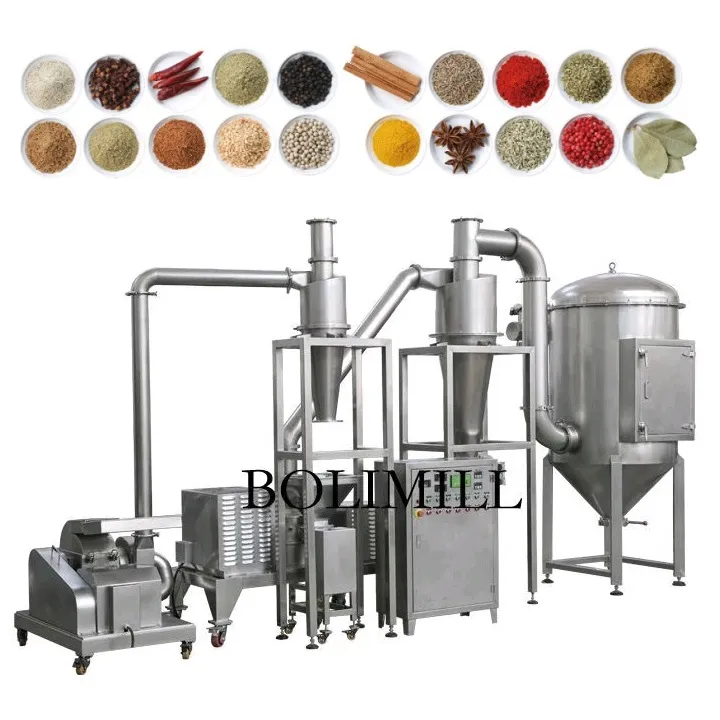

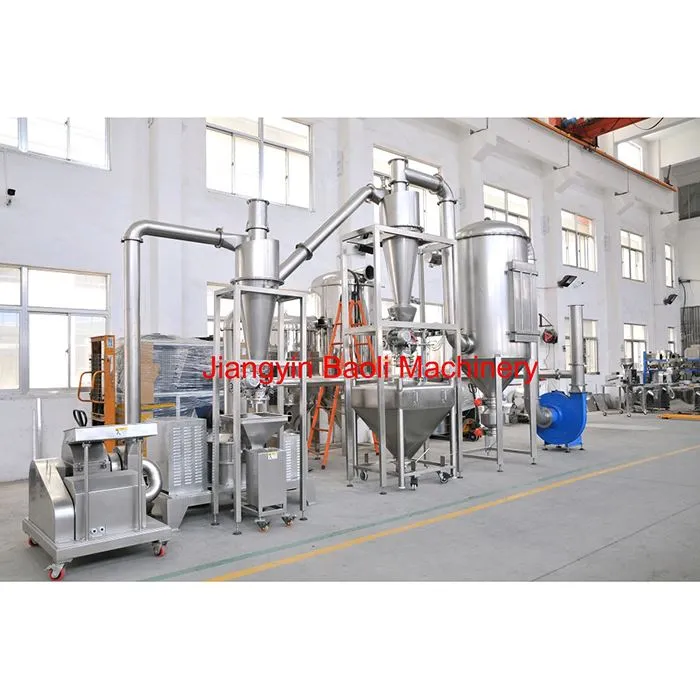

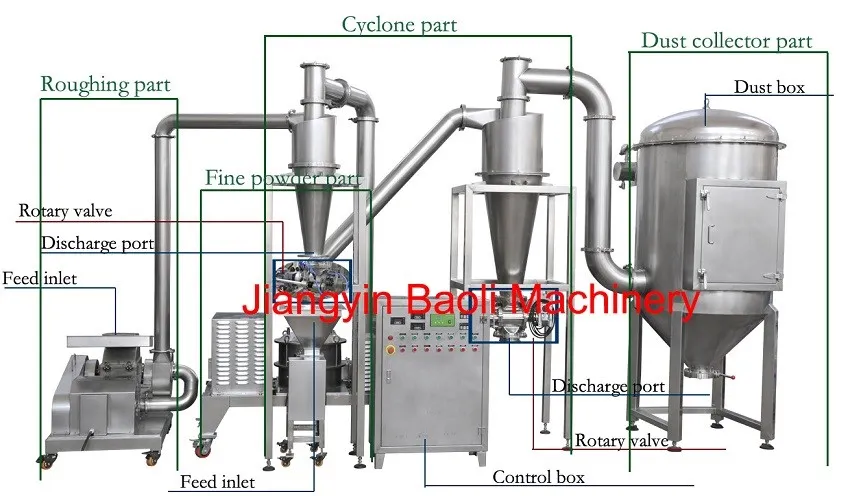

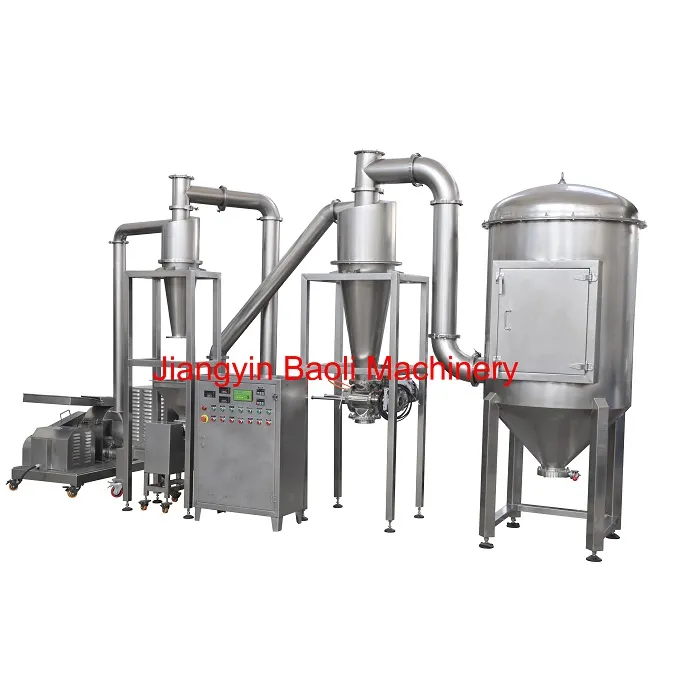

A: This is an integrated solution, not a single device. The complete ultra-fine grinding machine unit is a collaborative system, typically comprising the following core components:

Main Unit: Includes two stages: coarse crushing (hammer mill) and fine crushing (ultrafine grinding), ensuring the material is thoroughly pulverized.

Cyclone Separator: Used to separate and collect most of the finished powder from the airflow.

Pulse Jet Dust Collector: As a secondary collection system, it captures fine dust, ensuring clean exhaust air that meets environmental standards, while maximizing the finished product collection rate.

We provide the complete equipment from feeding to finished product collection, ensuring quick installation and commissioning upon receipt.

A: We understand the impact of downtime on production efficiency, so we have focused on durability and ease of maintenance.

Long Lifespan Design: Thanks to optimized roller pressing and grinding technology, our grinding rollers and grinding rings experience very uniform wear, with a lifespan typically 3 to 5 times that of traditional Raymond mills. When processing general non-metallic minerals, critical components can last for more than a year.

Convenient Maintenance: The equipment's structural design fully considers maintenance needs. There are no rolling bearings or screws inside the grinding chamber, reducing potential points of failure. Furthermore, we offer a modular, quick-release structure, making replacement of wear parts or internal cleaning easier and faster, significantly reducing downtime.

A: Absolutely. We have extensive experience in the international market and are well aware that electricity standards vary across Southeast Asian countries (such as Indonesia, Vietnam, Thailand, and Malaysia). We can customize the motor's voltage, frequency, and number of phases (e.g., 220V/380V/415V, 50Hz/60Hz) according to your factory's specific requirements, ensuring the equipment is "plug and play" without requiring you to purchase an additional transformer, saving you costs and simplifying the installation process.

A: Rest assured, safe delivery of the equipment is our top priority.

Professional Packaging: The entire machine is typically secured in a sturdy, fumigation-free wooden crate. Key components such as the motor and electrical control cabinet receive additional waterproof and shockproof protection to ensure they can withstand long-distance sea transport.

Comprehensive Guidance: Detailed installation drawings and operation manuals are provided with the equipment upon shipment. Furthermore, our engineering team offers comprehensive remote video guidance to assist you with equipment installation, commissioning, and personnel training, ensuring a smooth start-up.
