Ultra Fine Grinding Mill

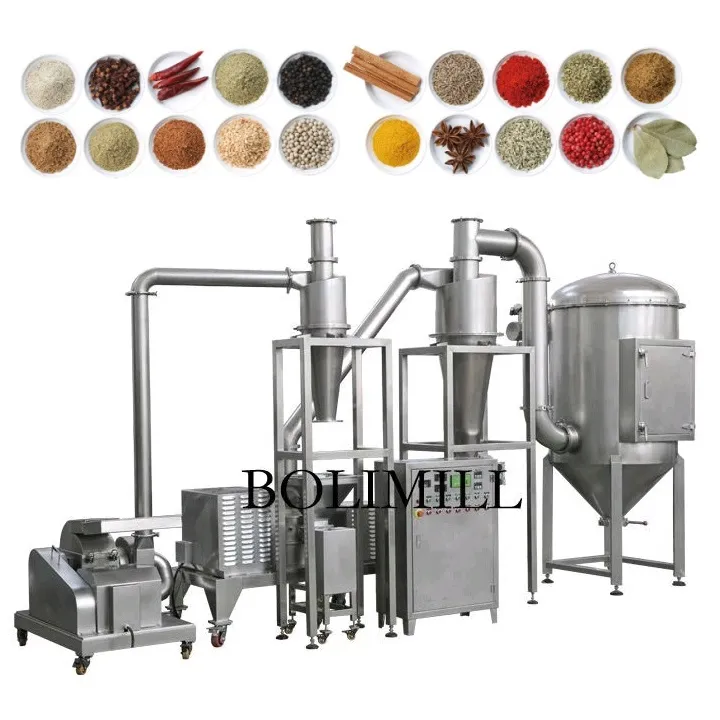

The JB series ultra fine grinding mill consists of a hammer mill, an ultra-micron mill, a cyclone separator, and a pulse-jet dust collector. It features a screenless, filterless design and uniform particle size output. The production process is continuous and can directly grind large particles into fine powder of 60-320 mesh.



This ultra fine powder grinding machine can grind high-oil or high-fiber ingredients such as chili peppers, black pepper, white pepper, green pepper, cinnamon, cumin, red chili pepper, nutmeg, cardamom, red yeast rice, red chili peppers, garlic, star anise, cloves, cardamom, geraniol, turmeric, ginger, fennel, anise, and angelica. Furthermore, the ingredients can be fed directly into the machine without coarse crushing. This grinder features high processing capacity, no color change, and preservation of the raw materials' physicochemical properties.

Baoli Machinery presents the industrial ultra-fine powder grinding machine for spice & herb, a comprehensive solution engineered specifically for the Southeast Asia region's diverse botanical processing needs. This isn't just a grinder; it's a complete production line designed to transform raw herbs and spices into high-value, micronized powders with unparalleled efficiency and hygiene.





Model	Main Structural Dimensions (mm)							Capacity	Input Particle Size	Output Particle Size	Speed	Machine Weight	Total Power
	L1	L2	H1	H2	H3	H4	W1	Kg/H	mm	mesh	rmp	kg	KW
JB-350+20	5487	6810	859	2743	2862	650	1574	15-200	50	60-320	8600	1800	28.5
JB-450+30	6370	7991	1056	3472	3352	650	1783	50-600	50	60-320	6700	3600	61
JB-550+60	7288	9010	1096	3472	3652	800	2025	100-1000	50	60-320	5250	5300	106
JB-550+80	8410	10372	1096	3772	4015	800	2199	120-1500	50	60-320	4850	7500	145





This ultra-fine grinding mill has a compact structure and, compared to a micro-grinding mill, is equipped with more pre-treatment hammers for coarse crushing, enabling direct crushing of large particles, achieving continuous crushing, and generating no dust. Fine powder captured by the dust collector can be effectively recovered, reducing the material loss rate.

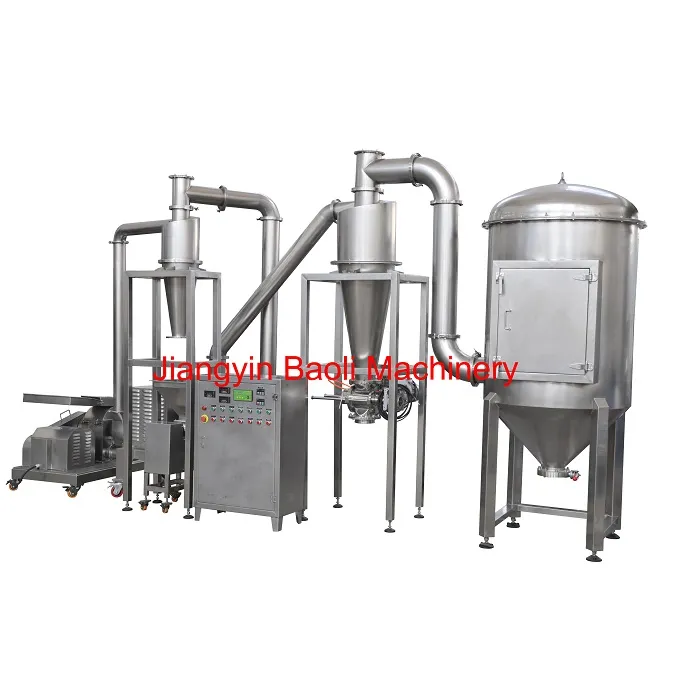

Our ultra fine grinding mill is an integrated system, meticulously designed to handle every stage of the pulverization process. It combines a robust Hammer Mill Host for primary crushing with a sophisticated Ultra-Fine Mill Host for deep micronization. This two-stage process ensures that materials are not just broken down, but refined to a consistent, ultra-fine texture.



The system is completed by a high-efficiency cyclone separator and a pulse dust collector. The cyclone captures the vast majority of your finished product, while the pulse dust collector ensures that the air released back into your facility is clean and free of fine particulate matter. This closed-loop design not only maximizes yield and protects your working environment but also meets the stringent environmental and safety standards increasingly required across Southeast Asia.





We understand that operating in Southeast Asia presents unique challenges, particularly the hot and humid climate that can cause materials to absorb moisture and clog machinery. Our ultra-fine grinding mill is built to overcome these obstacles.



* Heat & Moisture Management: The system is designed to manage the heat generated during grinding, preventing heat-sensitive spices from melting or losing their volatile oils. The powerful airflow from the dust collection system also helps to evacuate moisture, reducing the risk of screen clogging and ensuring smooth, continuous operation.



* Hygienic & Durable Construction: All parts in contact with the material are constructed from high-grade SUS304 stainless steel. This ensures resistance against the corrosive nature of spices and salts, guarantees food safety, and allows for easy cleaning and maintenance, helping you comply with GMP and HACCP standards.







The ultra fine grinding mill is widely applied in the medical ,chemical,pesticide,food and provision industries. With an adjustable output range of 60 to 320 mesh, you have complete control over your product's final specification.

* Food & Seasoning: Produce ultra-fine chili powder, turmeric, pepper, and custom spice blends that dissolve instantly and distribute flavor evenly in instant noodles, sauces, and snacks.

* Botanical Extracts: Grind herbs like ginger, cinnamon, and moringa to a fine powder, increasing the surface area for more efficient extraction of active compounds.

* Traditional Medicine: Process a variety of dried herbs and roots into micronized powders suitable for pills, capsules, and teas, preserving their therapeutic properties.









Partner with Baoli Machinery for a solution that understands your market, respects your materials, and elevates your production capabilities. Contact us today to discuss how our ultra-fine grinding mill for spice & herb can become the cornerstone of your processing line.
