Stainless Steel Hammer Mill
JB series stainless steel hammer mill can be used for continuous size reduction of a wide range of materials. It can pulverize spices and oily materials with an oil content of less than 20%, achieving a final particle size of 10-60 mesh. It is also suitable for herbs and root vegetables with high fiber content. The crushing size is controlled by the screen, and continuous production can be achieved under normal temperatures.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
What Is Stainless Steel Hammer Mill
JB series stainless steel hammer mill can be used for continuous size reduction of a wide range of materials. It can pulverize spices and oily materials with an oil content of less than 20%, achieving a final particle size of 10-60 mesh. It is also suitable for herbs and root vegetables with high fiber content.
The crushing size is controlled by the screen, and continuous production can be achieved under normal temperatures.

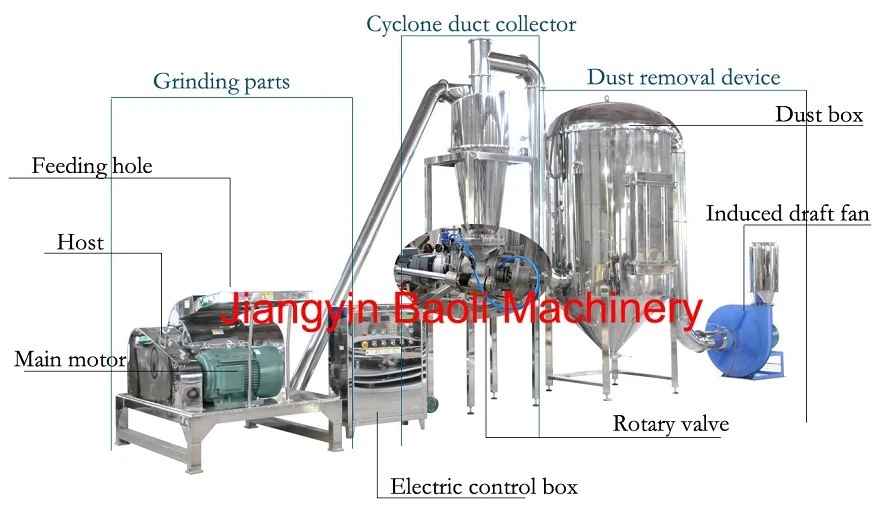

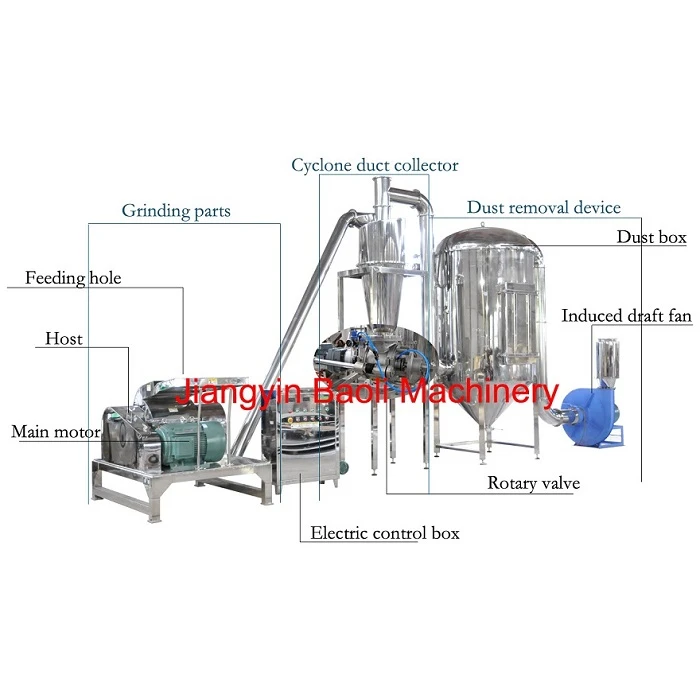

This stainless steel hammer mill is suitable for the pharmaceutical, chemical, and food industries. It is a new generation of crushing equipment integrating crushing, dust removal, and continuous discharge.
Key Features of Stainless Steel Hammer Mill
* It is a hammer mill that is all made of stainless steel. It has a strong structure with high intensity and strength. Wear resistence that it is durable, dustproof, and waterproof, making it can be used for a long period. With the fine treatment, it is smooth that it is easy to maintain and clean, so that it can still look the same as new after long-term use.
* An electric control box is equipped independently to make sure the safety of the power supply to protect workers and the machine, reducing the cost.
* It has excellent performance and convenient operation. For example, it can make the spices into a spice powder with uniform particles.
* It is possible to keep working for a long period according to its strong motor and intelligent control system. It is practical with the simple design.
* It is manufactured under strict standards, meeting the national standards and the requirements of GMP. It is food-grade so that it can be applied to the food industry.
Applications of Stainless Steel Hammer Mill
Grain and Condiments: Crushing sugar, rice, soybeans (for flour production), spices, dried chili peppers, etc.
Food Ingredients: Processing tubers, dried fruits and vegetables, etc., to provide raw materials with suitable particle sizes for subsequent extraction or further processing.
By-product Utilization: Crushing food processing by-products such as soybean meal, rice bran, fruit pomace, etc., for use in animal feed or the extraction of valuable components.
Technical Parameters of Stainless Steel Hammer Mill
|
Model |
Main Structural Dimensions (mm) |
Capacity |
Input Particle Size |
Output Particle Size |
Machine Weight |
Speed |
Total Power |
||||||
|
L1 |
L2 |
H1 |
H2 |
H3 |
H4 |
W |
Kg/H |
mm |
mesh |
Kg |
Rpm/min |
KW |
|
|
JB-350 |
5100 |
6380 |
2900 |
1100 |
650 |
400 |
1660 |
80-300 |
<100*20 |
10-60 |
1200 |
3200 |
23.25 |
|
JB-450 |
5430 |
7055 |
3125 |
1230 |
650 |
400 |
1780 |
100-500 |
<100*20 |
10-60 |
1600 |
2900 |
30.25 |
|
JB-550 |
5560 |
7220 |
3125 |
1235 |
650 |
400 |
1935 |
150-700 |
<100*20 |
10-60 |
2100 |
2350 |
41.75 |
|
JB-650 |
6575 |
8570 |
4100 |
1330 |
650 |
400 |
2200 |
200-1100 |
<100*20 |
10-60 |
2800 |
2000 |
60.75 |
|
JB-850 |
6500 |
8500 |
3350 |
1200 |
650 |
400 |
1800 |
300-1500 |
<100*20 |
10-60 |
3600 |
1500 |
74.25 |
