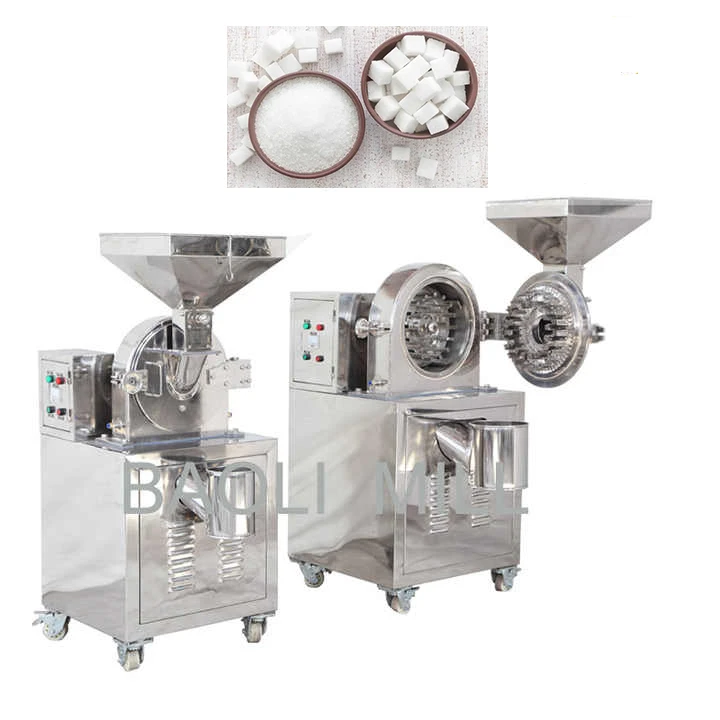

Sugar Pulverizer Machine
The JB series sugar pulverizer machine is a highly efficient and reliable sugar-making machine. It is designed to crush sugar crystals into smaller particles for better processing and packaging. With its unique features and cutting-edge technology, this sugar grinder ensures a smooth and stable flow of sugar throughout the production process.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
The JB series sugar pulverizer machine is a highly efficient and reliable sugar-making machine. It is designed to crush sugar crystals into smaller particles for better processing and packaging. With its unique features and cutting-edge technology, this sugar grinder ensures a smooth and stable flow of sugar throughout the production process.
This sugar grinder operates at high speeds, capable of processing large quantities of sugar in a short time. Its automated control system ensures efficient operation without the need for continuous monitoring. This feature not only improves production efficiency but also reduces the risk of human error, thereby enhancing workplace safety.
Furthermore, this sugar powder machine is energy-efficient, saving on electricity costs and reducing carbon emissions. It is also easy to clean and maintain, thus reducing downtime and extending the equipment's lifespan.
Technical Parameters
|
Model |
Production Capacity |
Feeding Size |
Crushing Fineness |
Crushing Motor |
Overall Dimension (L*W*H) |
Weight |
|
JB-20 |
20-150kg/h |
＜6mm |
12-120mesh |
4kw |
650*850*1500mm |
230kg |
|
JB-30 |
30-350kg/h |
＜10mm | 12-120mesh |
7kw |
700*900*1650mm |
330kg |
| JB-40 |
50-450kg/h |
＜12mm | 12-120mesh |
11kw |
750*1000*1740mm |
430kg |
| JB-50 |
80-550kg/h |
＜15mm | 12-120mesh |
18.5kw |
820*1100*2000mm |
700kg |
| JB-60 |
100-800kg/h |
＜15mm |
12-120mesh |
22kw |
950*1150*2150mm |
900kg |
| JB-80 | 120-1000kg/h | ＜20mm | 12-120mesh | 30kw | 1100*1400*2250mm | 1200kg |
| JB-100 | 150-1500kg | ＜20mm | 12-120mesh | 45kw | 1300*1500*2400mm | 1800kg |
Main Features
* Simple structure and runs smoothly.
* The machining precision of the blade plate is very high, and it is subjected to thermal treatment and dynamic balance.
* Low price and high cost performance.
* Use imported SKF bearings.
* Easy to install, dismantle, and clean with the features of stable running, convenient moving, and low noise. high grinding efficiency.
Certification: ISO9001,CE, ISO14001, OHSAS18001 etc.
Material: SUS304, SUS 316L
Voltage: The voltage can be as local demand
Payment term: TT, LC
Packing: export standard
Market: Middle East/ Africa/Asia/South America/Europe/North America
Warranty: 1 year
MOQ: 1 set
Our Service and Advantage
1. 24-hour Online service
Please feel free to contact us. Our sales team will provide you with 24 hours better pre-sale,
2. Competitive price
All of our products are supplied directly from factory. So the price is very competitive.
3. Warranty
All products have a one-two years warranty.
4. OEM/ODM
With 14 years experiences in this field, we can provide customers with professionalsuggestion. To promote common development.
If you want to send inquriy to me,plese tell me the following questions.
1) What material you want to grind, is it dry? what is the size of feed material ?
2) What capacity you expect ? (kg/h)
3) What mesh or mm or micron(size) of the powder you want?
4 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...
(We only provide 3P, because our machines are all for industrial use,not for family.)
5) Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.
Then our communication will be more efficient.
Please feel free to send us your detailed requirements, you would be satisfied with our service.
