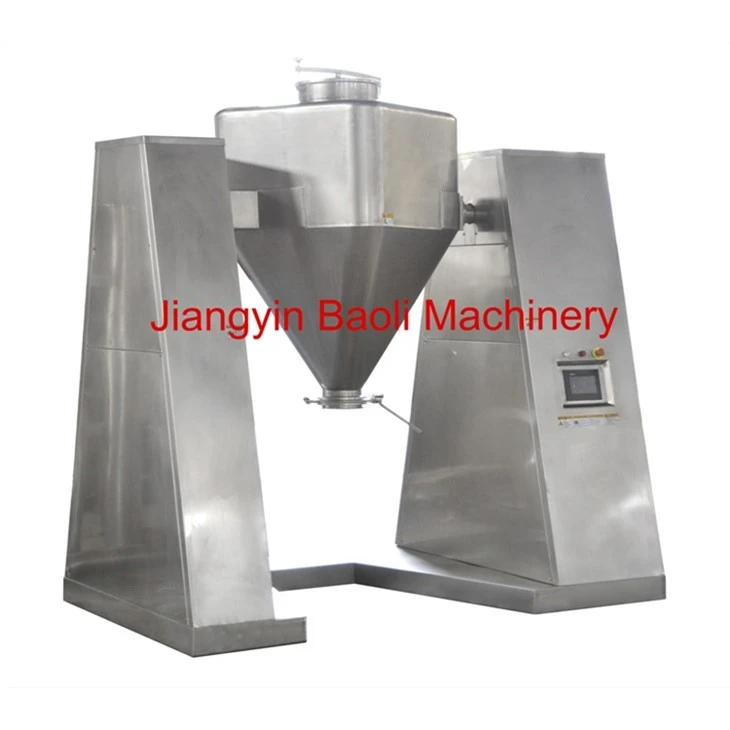

Square Cone Mixing Machine
Baoli Machinery's square cone mixing machine is specifically designed for ultra-uniform mixing of various products in the pharmaceutical, chemical, and food industries. Unlike other two-dimensional mixers, this square cone mixer employs a three-dimensional mixing method, resulting in higher mixing efficiency.
The square cone mixing machine features a novel design, compact structure, and exquisite appearance, achieving a mixing uniformity of 99% and a loading coefficient of 50%-80%, while other mixers only achieve a mixing uniformity of 40%-50%.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Square Cone Mixer: Conical Fine Mixing, Homogeneous and Residue-Free
Baoli Machinery's square cone mixing machine is specifically designed for ultra-uniform mixing of various products in the pharmaceutical, chemical, and food industries. Unlike other two-dimensional mixers, this square cone mixer employs a three-dimensional mixing method, resulting in higher mixing efficiency.
The square cone mixing machine features a novel design, compact structure, and exquisite appearance, achieving a mixing uniformity of 99% and a loading coefficient of 50%-80%, while other mixers only achieve a mixing uniformity of 40%-50%.
Square Cone Mixing Machine Working Principle
Materials are loaded into a closed square-cone mixing container. The container's axis of symmetry and axis of rotation form a certain angle. The materials inside the container tumble violently during three-dimensional rotation, generating high shear force, thereby achieving the best mixing effect.
Key Features of Square Cone Mixing Machine
* Novel overall design, compact structure, beautiful appearance; mixing uniformity reaches 99%, volumetric loading coefficient reaches 0.8.
* Low rotation height, stable operation, reliable performance, and convenient operation.
* Both inner and outer walls of the mixing barrel are mirror-polished, with no dead corners, facilitating unloading, cleaning, and maintenance, and preventing cross-contamination.
* Fully complies with GMP requirements for pharmaceutical production.
Technical Data of Square Cone Mixing Machine
| Model | Main Structural Dimensions (mm) | Volume |
Max Loading |
Speed |
Machine Weight |
Total Power |
||||||
| L | W1 | W2 | H1 | H2 | H3 | DN | L | KG | Rpm/min | Kg | KW | |
| JB-400 | 2050 | 1220 | 1550 | 1900 | 800 | 2350 | 150 | 400 | 200 | 3-12 | 600 | 2.2 |
| JB-500 | 2100 | 1220 | 1620 | 2065 | 800 | 2420 | 150 | 500 | 250 | 3-12 | 800 | 3 |
| JB-1000 | 2750 | 1650 | 2100 | 2300 | 800 | 2900 | 200 | 1000 | 500 | 3-12 | 1200 | 4 |
| JB-1500 | 3000 | 1650 | 2200 | 2540 | 800 | 3000 | 250 | 1500 | 750 | 3-12 | 1500 | 4 |
| JB-2000 | 3200 | 1900 | 2350 | 2680 | 800 | 3150 | 250 | 2000 | 1000 | 3-12 | 1900 | 5.5 |
| JB-2500 | 3400 | 1900 | 2500 | 2840 | 800 | 3300 | 250 | 2500 | 1250 | 3-12 | 2400 | 7.5 |
| JB-3000 | 3750 | 2200 | 3050 | 3000 | 800 | 3850 | 250 | 3000 | 1500 | 3-12 | 2900 | 11 |
| JB-4000 | 3850 | 2200 | 3075 | 3300 | 800 | 3875 | 250 | 4000 | 2000 | 2-8 | 3500 | 15 |
Note: Our professional engineers will provide suitable models based on different usage environments. Please contact our engineers and inform them of your usage requirements, such as mixing volume, space constraints, etc. Our engineers will customize design drawings for the square cone mixing machine according to your requirements for your confirmation.
