Veterinary Medicine Premix Powder Mixer
Brand Name:BOLIMILL
Product Code: JB Series Veterinary Medicine Premix Powder Mixer
Material: Sainless Steel
Minimum order: 1 set
Shipping port: Shanghai Port
Delivery time: 30 days
Payment method: L / C, T / T, Western Union, Paypal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

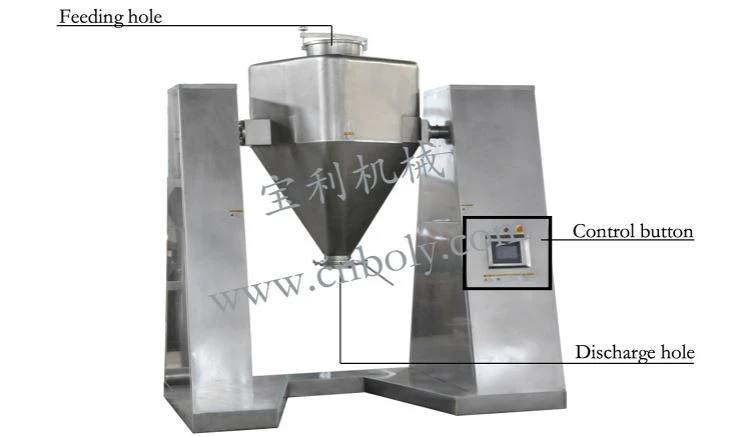

Veterinary Medicine Premix Powder Mixer
Correct operation steps
Everyone knows that the square cone mixer has a good effect, but there is a premise that it requires our correct operation. So before we start up, we need to do some inspections to ensure our safe use.
1. Check the spindles at both ends for cracks or loose bolts.
2. Check whether the fasteners are loose and whether the connection is OK. Whether the electrical wiring connector is disconnected.
3. Visually inspect the barrel of the mixer, if there are uneven scars, it will affect the stable operation.
4. The above checks are correct before starting.
Technical Data
| Model | Main Structural Dimensions(mm) | Volume | Max Loading | Speed | Machine Weight | Total Power | ||||||
| L | W1 | W2 | H1 | H2 | H3 | DN | L | KG | Rpm/min | Kg | KW | |
| JB-180 | 1450 | 800 | 1100 | 1650 | 650 | 1750 | 150 | 180 | 90 | 3-12 | 300 | 1.5 |
| JB-300 | 1685 | 900 | 1300 | 1750 | 650 | 1950 | 150 | 300 | 150 | 3-12 | 500 | 2.2 |
| JB-500 | 1910 | 1220 | 1500 | 1950 | 650 | 2150 | 200 | 500 | 250 | 3-12 | 800 | 3 |
| JB-1000 | 2765 | 1650 | 1700 | 2200 | 650 | 2350 | 200 | 1000 | 500 | 3-12 | 1200 | 4 |
| JB-1500 | 2960 | 1650 | 2000 | 2480 | 650 | 2540 | 250 | 1500 | 750 | 3-12 | 1500 | 5.5 |
| JB-2000 | 3100 | 1900 | 2100 | 2550 | 650 | 2750 | 250 | 2000 | 1000 | 3-12 | 2000 | 7.5 |
| JB-2500 | 3300 | 1900 | 2350 | 2950 | 650 | 3000 | 250 | 2500 | 1250 | 3-12 | 2400 | 11 |
| JB-3000 | 3600 | 2200 | 2450 | 3000 | 650 | 3100 | 250 | 3000 | 1500 | 3-12 | 2900 | 15 |
| JB-4000 | 4750 | 2200 | 2850 | 3250 | 650 | 3500 | 250 | 4000 | 2000 | 2-8 | 4100 | 18.5 |

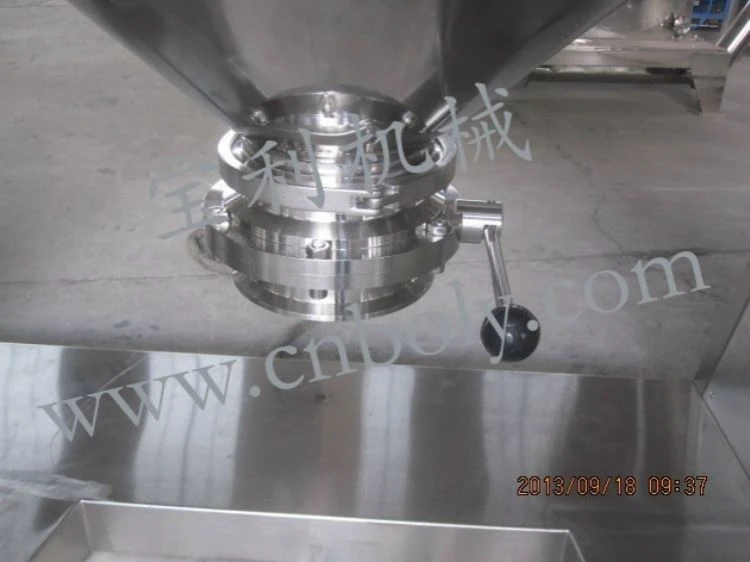

Detail Pictures
Our Service
FAQ
If you want to send inquriy to me about Stainless steel square cone mixer machine from China, could you please tell me?
1 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...
(We only provide 3P, because our machines are all for industrial use,not for family.)
2) Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.
Then our communication will be more efficient.
